Single In-Line Leadframes

A robust foundation for modern electronic circuitry, optimising both the manufacturing process and operational efficiency

Also known as Single In Line Pin (SIP). Typical applications include resistor networks, hybrid circuits and PCB terminations. SIL leadframes are available with pitches of 1.27mm to 2.54mm as detailed in the catalogue. Customised versions and special designs are also possible.

Single In Line Pin

These Single In-Line Lead Frames significantly contribute to reduced costs and improved electrical performance across a wide range of electronic applications.

Features

  • Through hole mount
  • Mounting in-board or out-board
  • Standard Pitch Sizes
  • Edge or central mounting
  • Break-off tie bars
  • Multiple orientation options available
  • Multiple plating options
  • Multiple material options

Benefits

  • Low cost effective solution for through hole board to board interconnect
  • High reliability
  • Provides framework for board stacks
  • Maximises available board space
  • Easy rework capability
  • Low set-up costs

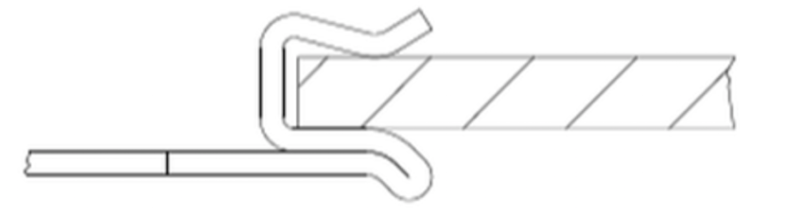

Wrapped Back Clip



Wrapped Back Clip

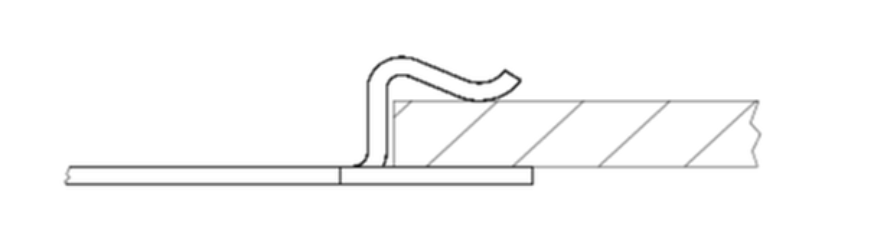

Standard Clip



Standard Clip

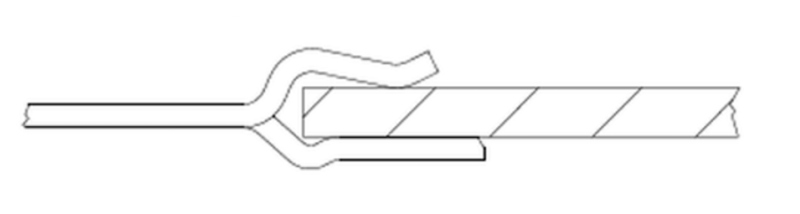

Offset Clip



Offset Clip

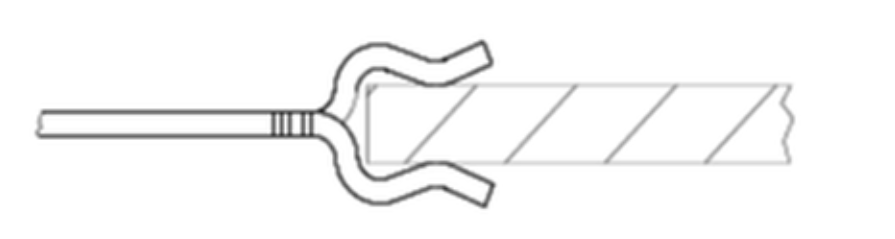

Centre Clip



Centre Clip



Component Ordering Key
